Isuzu 3KC2 Engine Rebuild Kits & Replacement Parts

The Isuzu 3KC2 diesel engine is a compact three‑cylinder platform built for dependable low‑RPM torque, smooth cold starts, and long service intervals in industrial environments. As hours accumulate, normal wear in rings, liners, bearings, and sealing surfaces can lower compression, raise oil consumption, and increase smoke. A correctly matched 3KC2 engine rebuild kit restores sealing integrity, recovers compression, and brings equipment back to predictable uptime—without dealer‑level costs. All components offered here are curated for the 3KC2 platform and manufactured to meet or exceed OEM specifications, so you can rebuild once and rebuild right.

Complete 3KC2 Overhaul Solutions

  • Full / Upper / Lower Gasket Sets: Precision‑cut materials designed to contain combustion, coolant, and oil under thermal load and vibration.
  • Pistons, Rings & Pins: Tight tolerance control and ring tension to restore compression, reduce blow‑by, and stabilize oil usage.
  • Cylinder Liners: Semi‑finished or finished liners to re‑establish true bore geometry for cleaner combustion and durability.
  • Main & Rod Bearings: Load‑bearing shells built to spec for smooth crank rotation, pressure stability, and long journal life.
  • Thrust Washers: Proper crankshaft end‑play control to protect thrust faces during axial loading.
  • Valve‑Train Components (select kits): Guides, seals, and seats to improve top‑end stability and reduce seepage.

Each kit is assembled to suit common Isuzu 3KC2 service scenarios, minimizing parts chasing and installation delays.

Typical 3KC2 Applications

The compact 3KC2 commonly powers forklifts, generators, compressors, agricultural implements, light construction equipment, and stationary power units. These duty cycles reward steady low‑speed torque, reliable restarts, and long service intervals—capabilities sustained by a precise rebuild using accurately matched components.

When an Overhaul Makes Sense

  • Hard Starts / Low Compression: Worn rings or scored liners reduce cranking pressure and cold‑start reliability.
  • Rising Oil Consumption: Glazed bores or tired ring packs pull oil past the rings, increasing smoke and operating cost.
  • Blue / White / Black Smoke: Indicates sealing, fueling, or oil‑control imbalance; a top/bottom‑end refresh often resolves it.
  • Knocking or Tapping: Bearing wear or piston slap requires inspection before further operation.
  • Coolant/Oil Cross‑Contamination: Aging head‑gasket or stack sealing may call for a comprehensive reseal.
  • Loss of Power / Poor Fuel Economy: Compression recovery via pistons/liners and a full reseal can restore efficiency.

Fitment & Sizing Guidance

Confirm these points before ordering to ensure correct fit and long service life:

  • Engine Identification: Verify 3KC2 model designation and any variant/update notes from the engine tag or service documents.
  • Liner Type & Final Bore: Determine semi‑finished vs. finished liners and confirm target bore size and liner protrusion spec.
  • Piston/Ring Specifications: Match compression height, crown style, and ring pack dimensions to your build sheet.
  • Bearing Grades: Check main/rod bearing sizes (STD or undersize) against measured crank journal diameters.
  • Complementary Components: Consider oil pump, water pump, and timing components if service history is unknown.

Installer Notes & Best Practices

  • Measure Everything: Mic crank pins/journals; verify liner protrusion and piston‑to‑wall clearances per spec.
  • Surface Prep: Deck and head must be flat, clean, and residue‑free; follow torque sequence and angle specs precisely.
  • Cleanliness: Flush oil galleries, clean ring lands, and keep assembly areas lint‑free to prevent premature wear.
  • Fuel & Air System Checks: After mechanical overhaul, verify injector condition, pump calibration, and intake/filtration integrity.
  • Break‑In: Use proper break‑in procedures and oil to seat rings quickly and stabilize blow‑by.

Performance & Uptime Benefits

  • Compression Recovery: Correct pistons/liners restore cranking pressure, throttle response, and cold‑start behavior.
  • Leak & Smoke Reduction: New gaskets, seals, and ring packs reduce weeps, blow‑by, and visible exhaust smoke.
  • Lower Operating Cost: Improved oil control and combustion efficiency help manage fuel and maintenance spend.
  • Predictable Service Intervals: Fresh wear components reset maintenance timelines for planned uptime.

Ordering Made Simple

  1. Identify: Confirm 3KC2 model and any variant/update details on your engine tag or manual.
  2. Select: Choose a full overhaul kit or targeted top/bottom‑end sets and components.
  3. Verify: Match piston/liner sizes and bearing grades to measured dimensions before checkout.
  4. Install: Follow torque and angle specifications; observe best practices for cleanliness and lubrication.

FAQs

What is included in an Isuzu 3KC2 overhaul kit?

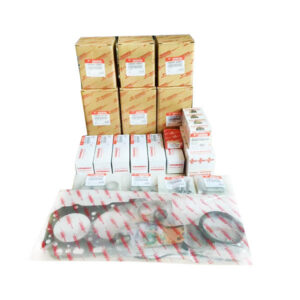

A standard 3KC2 overhaul kit typically includes complete gasket sets, pistons, piston rings, pins, cylinder liners, main & rod bearings, and thrust washers. Select kits may add valve guides, seals, and seats for improved top‑end stability.
How do I know if my Isuzu 3KC2 needs a rebuild?
Look for hard starting, low compression, rising oil use, reduced power, visible smoke, and knocking under load. A compression or leak‑down test helps confirm overhaul needs.
Can I purchase individual 3KC2 parts instead of a complete kit?
Yes. If a full rebuild isn’t required, you can order targeted components like gasket sets, bearings, pistons, or liners for partial repairs.
Are your 3KC2 components built to OEM quality?
Components are engineered to meet or exceed OEM specifications for fit, sealing integrity, and durability to support long service intervals.
Which measurements should I confirm before ordering 3KC2 parts?
Verify liner type and bore size, piston specifications (crown and ring pack), main/rod bearing grades from measured crank journals, and any variant‑specific notes from the engine tag.
